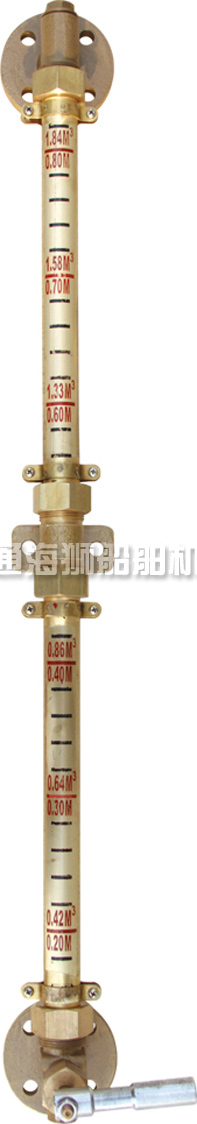

管式液位计 Tubular Type Level Gauge

概述（Introduction）

管式液位计参照CB/T3665-96标准生产，具有读数清晰、直观的特点，适用于船舶水柜的水位显示，其法兰连接尺寸符合GB569-65 6020（型号中带“S”，其法兰连接尺寸符合GB2506-89 6020），亦可根据用户指定的连接法兰标准制作。

Tubular Type Level Gauge

Tubular type level gauge is manufactured in accordance with CB/T3665-96 Standard. With clear numerical reading, it is applicable to display the level of ship water tank. The connection flange’s dimension is in accordance with GB569-65 6020 (If "S" appears in the type, it accords to   GB2506-89 6020). Other standards are available if you need.

主要技术指标（Main technical indicators）

 备注：上下阀件中心距也可表示为H=h×n+h1，其中h为下节中心距，h1为上节中心距，n为下节数量。

（注：除最上节外，都称为下节，最上一节称为上节。）

Remarks: the upper and lower valves’ center distance can be expressed as H=h×n+h1, h stands for the lower segment’s center distance, h1 stands for the upper segment’s center distance, n stands for the quantity of the lower segments.

(Note: The upmost segment is called the upper segment, the rest of the segments are called the lower segment.)
